- Frame
-
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142×12 mm thru axle
- Fork
- Weight
- 56 – 10.55 kg / 23.26 lb
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- *Shifter
-
Size:Â 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, rightSize:Â 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-L, 8 speed, left - Front derailleur
-
Shimano Claris R2000, 31.8 mm clamp
- Rear derailleur
-
Shimano Claris R2000, medium cage, 34T max cog

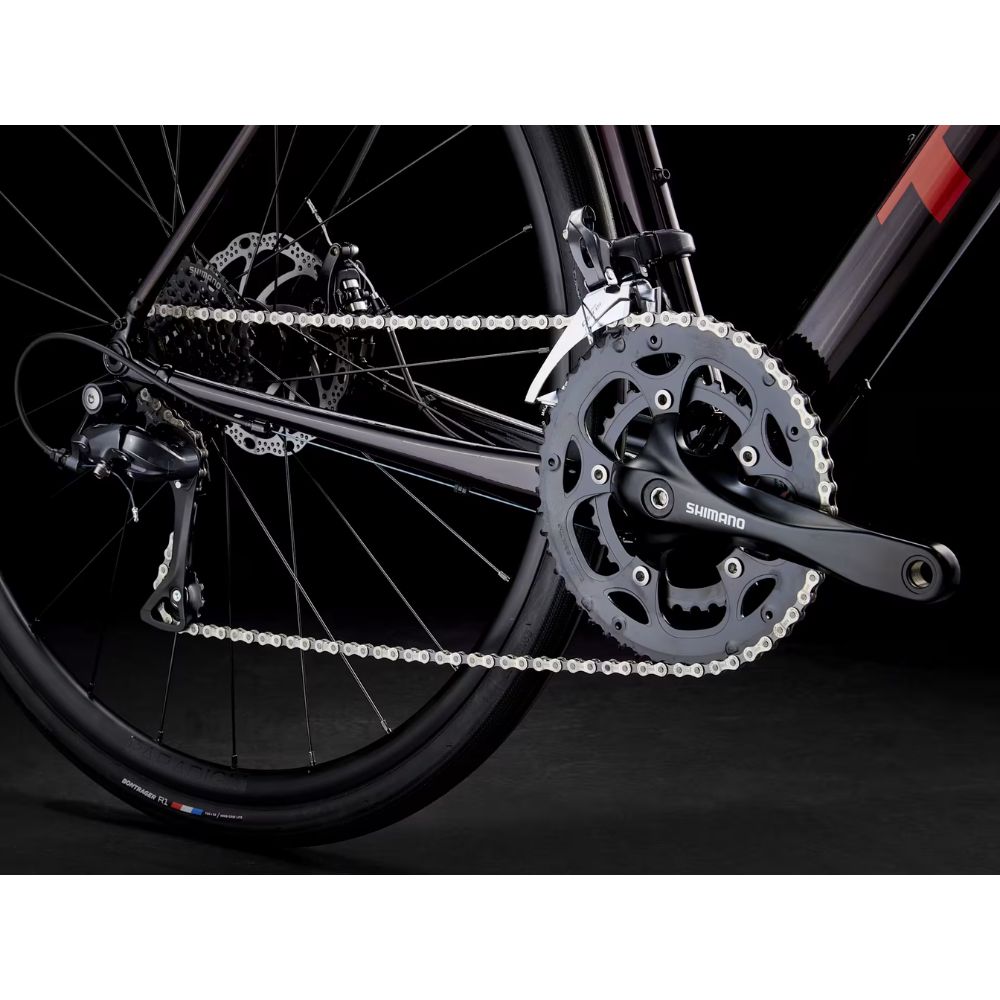

- *Crank
-
Size:Â 44
Shimano RS200, 50/34 (compact), 165 mm lengthSize:Â 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm lengthSize:Â 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length - Bottom bracket
-
Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
- Cassette
-
Shimano HG31, 11-32, 8-speed
- Chain
-
Shimano Sora HG71, 8 speed
- Max. chainring size
- 1x: 50T, 2x: 50/34
- Hub front
-
Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle
- Skewer front
- Hub rear
-
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle
- Skewer rear
- Rim
-
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
- Spokes
-
14 g stainless steel, black
- Tyre
-
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 mm
- Saddle
- *Seatpost
-
Size:Â 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm lengthSize:Â 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length - *Handlebar
-
Size:Â 44
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop widthSize:Â 49
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop widthSize:Â 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop widthSize:Â 54, 56
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width - Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size:Â 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize:Â 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm lengthSize:Â 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length - Brake
-
Tektro C550 mechanical disc brake, dual piston, flat mount
- Brake rotor
-
Tektro wave, 6-bolt, 160 mm
- Rotor size
- Max brake rotor sizes: 160 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
