*Please note – spec applies to all sizes unless listed separately
- Frame
-

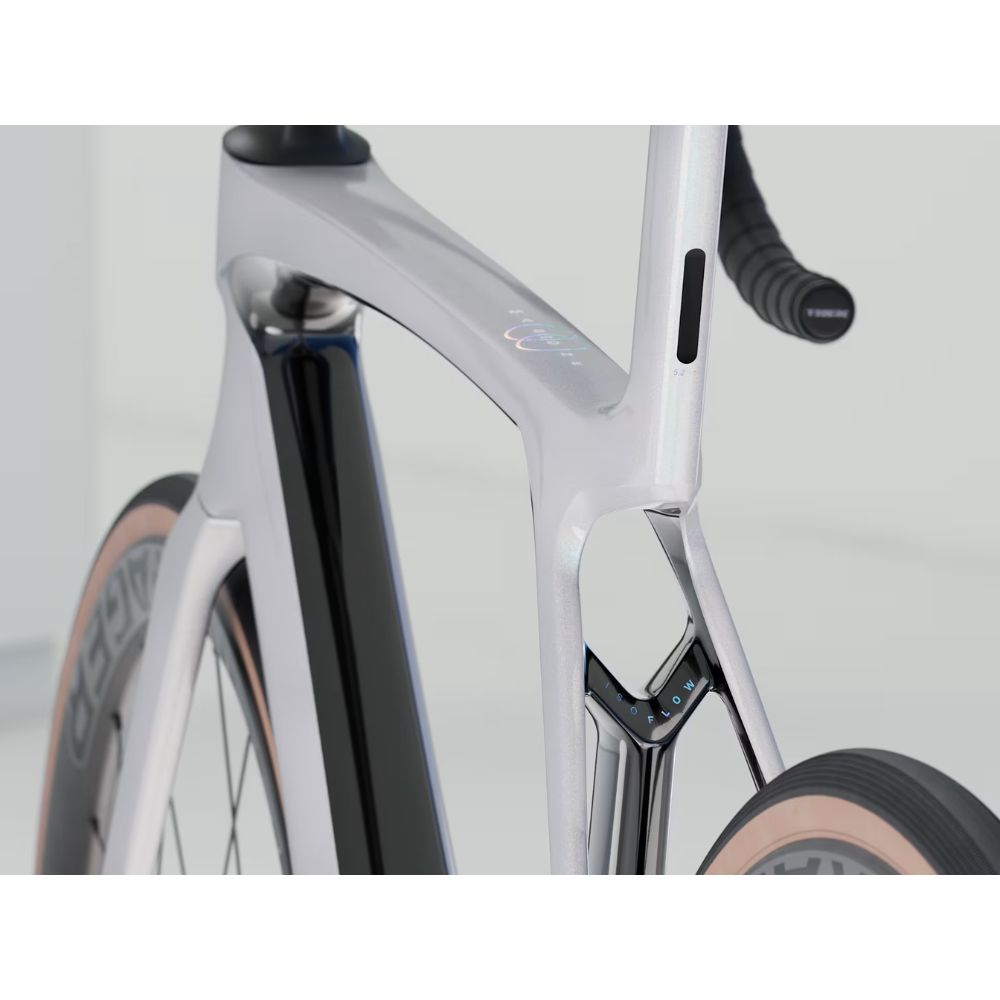

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
- Fork
- Weight
- ML – 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
-
Shimano BT-DN300
- Shifter
-
Shimano 105 R7170 Di2, 12-speed
- Front derailleur
-
Shimano 105 R7150 Di2, braze-on, down swing
- Rear derailleur
-
Shimano 105 R7150 Di2, 36T max cog

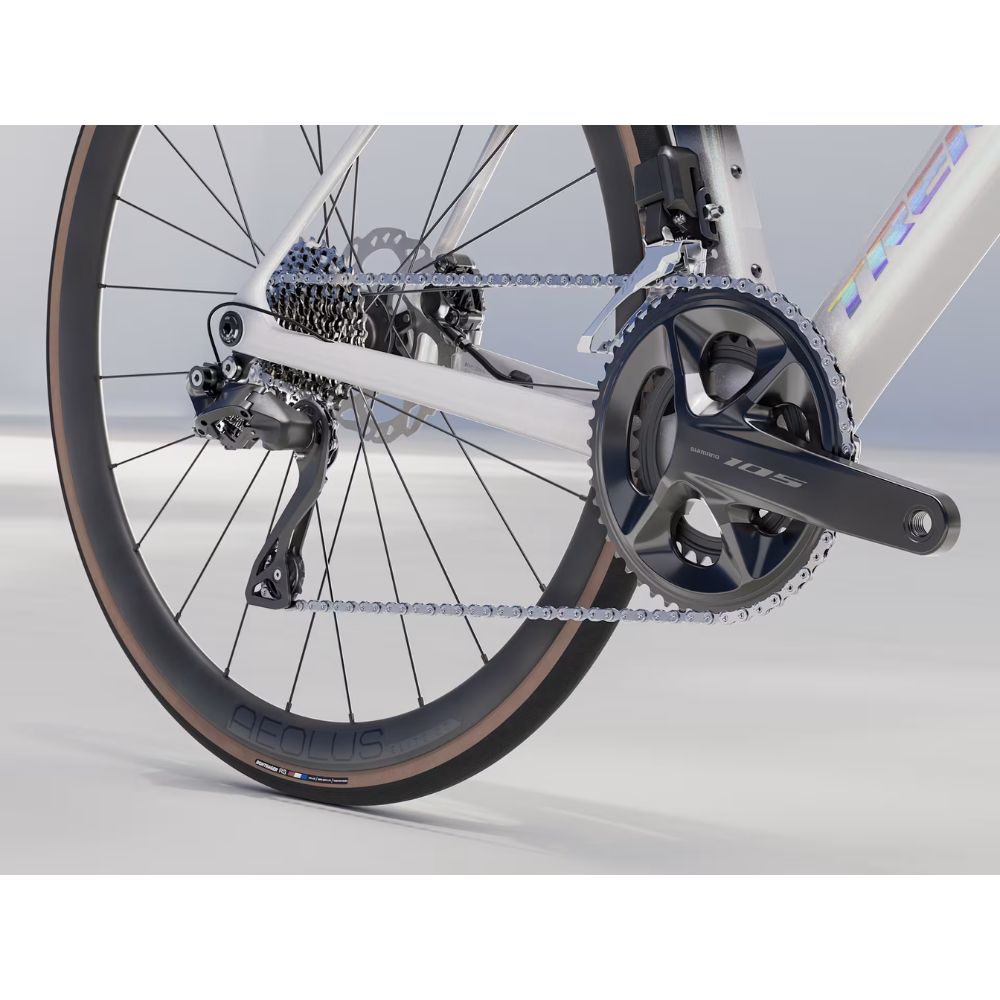

- *Crank
-
Size:Â XS, SShimano 105 R7100, 50/34, 165Â mm lengthSize:Â MShimano 105 R7100, 50/34, 170Â mm lengthSize:Â ML, LShimano 105 R7100, 50/34, 172.5Â mm lengthSize:Â XLShimano 105 R7100, 50/34, 175Â mm length
- Bottom bracket
- Cassette
-
Shimano 105 7101, 11-34, 12-speed
- Chain
-
Shimano SLX M7100, 12-speed
- Max. chainring size
- 1x: 54T, 2x: 56/43
- Wheel front
- Wheel rear
- Skewer front
- Skewer rear
- Tyre
-
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- 32 mm (as measured, see manual for details)
- *Saddle
-
Size:Â XS, S, M, ML, L, XL
Verse Short, steel rails, 145 mm widthSize:Â XS, SBontrager Aeolus Comp, steel rails, 155 mm widthSize:Â M, ML, L, XLBontrager Aeolus Comp, steel rails, 145 mm width - *Seatpost
-
Size:Â XS, S, M, XL
Madone aero carbon seat post, 0 mm offset, short length - *Handlebar
-
Size:Â XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop widthSize:Â S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width - Handlebar tape
- *Stem
-
Size:Â XS
Trek RCS Pro, -7-degree, 80 mm lengthSize:Â S, M
Trek RCS Pro, -7-degree, 90 mm lengthSize:Â ML, L
Trek RCS Pro, -7-degree, 100 mm lengthSize:Â XL
Trek RCS Pro, -7-degree, 110 mm length - Brake rotor
-
Shimano RT70, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
